Model : 2100/40 (40MM Single Double Auto Feed.)
Model 2100/32 (32mm Single Double Auto Feed)
Model 2100/25 (25mm Single Double Simple)

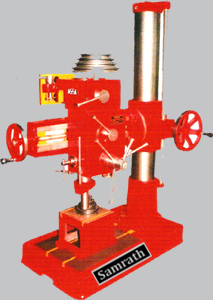

Universal Radial Drill Machines
Technical Specifications:
Drilling Capacity in Steel Material in (mm) | 25mm | 32mm | 40mm | 50mm |
Max-distance from spindle to coloum in (inch) | 25” | 33” | 39” | 49” |
Min-distance from spindle to coloum (inch) | 10” | 12” | 16” | 20” |
Max-distance from spindle to base plate (inch) | 32” | 37” | 45” | 53” |
Min-distance from spindle to base plate | 0 | 0 | 0 | 0 |
Diameter of Coloum (inch) | 6” | 7½ | 9” | 10” |
No of spindle speeds | 4 single 4 Double |
4 single 4 Double |
3single 3Double |
3single 3Double |
Range of spindle speeds | 80/700 RPM | 70/700 RPM | 60/700 RPM | 50/700 RPM |
Working surface of base plate (inch) | 18” X 30” | 19”x24” | 20” x32” | 24” x37” |
Travel of spindle Feed (inch) | 6” | 7” | 9” | 11” |
Spindle more taper no | 3 | 4 | 4 | 5 |
Arm net to any angle up to | 90 | 90 | 90 | 90 |
Flour Space Regard (inch) | 42”x25” | 42”x25” | 54”x29” | 60”x29” |
Approximate weight (Qntls) | 7½Qntls. | 8½ Qntls. | 16 Qntls. | 22 Qntls. |
HP Required Moter. | 1 HP | 1½ | 2 Hp | 3 HP |
