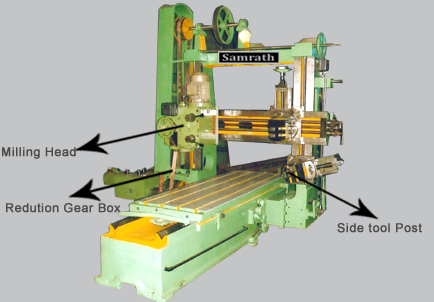

Planer cum plano miller Model No. SB 2100/ 3-1/2 x 3-1/2’Description: 6 Feet Planner Machine, 3 1/2*3 1/2'

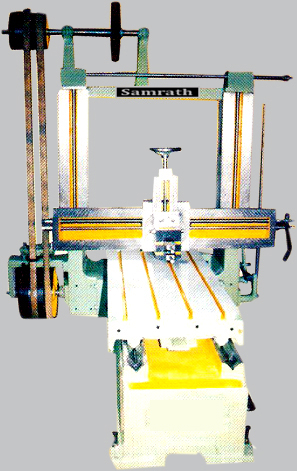

Model No. SB 3'X3'Description: Planner Machine 4.5Feet, 3*3'

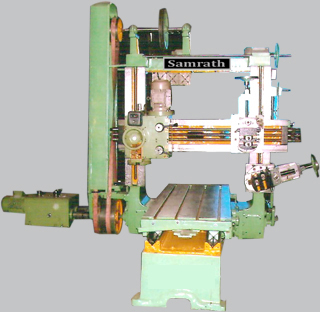

Model No. SB 2100/3 ½' X 3½' Description: Planner Machine 6 Feet, 3-1/2’x 3-1/2'
Small Planners
Particulars | Ft. | 4.1/2 | 6 | 6 | 8 | 8 |
MM | 1375 | 1830 | 1830 | 2440 | 2440 | |
Legnth of Bed |
Ft. | 8 | 10 | 10 | 13 | 13 |
MM | 2435 | 3050 | 3050 | 3960 | 3960 | |
Legnth of table | Ft. | 5 | 6 1/2 | 6.3/4 | 9 | 9 |
MM | 1525 | 1980 | 2060 | 2590 | 2670 | |
Stock of table | Ft. | 5 | 6. 1/2 | 6.3 | 8.1/2 | 8.3/4 |
MM | 1525 | 1980 | 2060 | 2745 | 2745 | |
Width of table | Inch | 25 | 25 | 31 | 25 | 31 |
MM | 635 | 635 | 790 | 365 | 790 | |
Planing Width | Inch | 37 | 43 | 49 | 43 | 49 |
MM | 940 | 1095 | 1245 | 1095 | 1245 | |
Height Under Cross Salid | Inc | 40 | 49 | 40 | 49 | |
MM | 865 | 1020 | 1245 | 1020 | 1245 | |
Total Add Feed | Inch | 9 | 9 | 12 | 9 | 12 |
MM | 865 | 1020 | 1245 | 1020 | 1245 | |
Coss Solid Face 11.½ | Inch | 11.½ | 11.½ | 15 | 11.½ | 11.½ |
MM | 295 | 295 | 380 | 295 | 380 | |
Pillar Face | Inch | 8 | 8 | 10 | 8 | 10 |
MM | 205 | 205 | 250 | 205 | 250 | |
V toV Center | Inch | 16.½ | 16.½ | 20 | 16.½ | 20 |
MM | 420 | 420 | 510 | 420 | 520 | |
No of Tool Post | 1 | 1 | 1 | 1 | 2 | |
H P Required | 2 | 2 | 2 | 2 | 3 | |
Appprox.Wt.in tls. | 35 | 43 | 60 | 50 | 70 |
