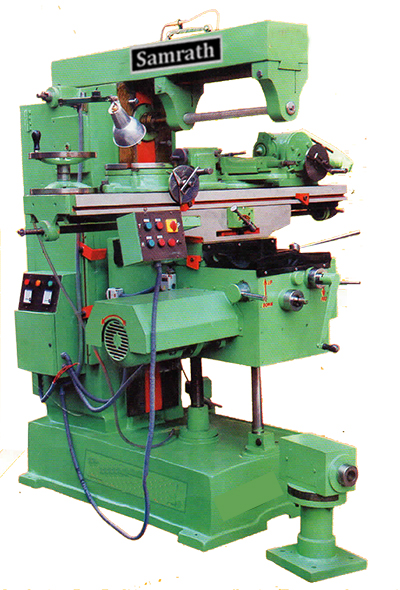

Universal Milling Machine No. 2,3 & 4 All Geared
All Autofeed with All Electricals
ON RAPID LONGITUDINAL |

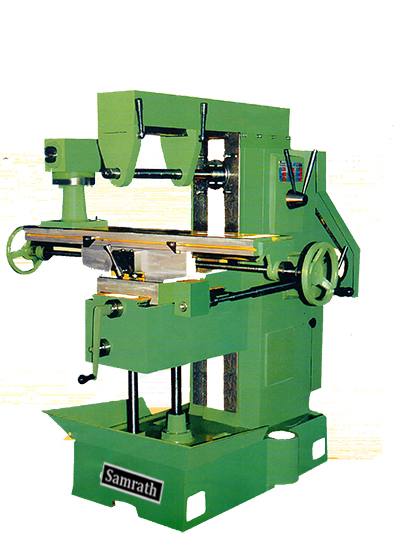

Universal Milling Machine
On Rapid Longitudinal 1 min.2" Running |
| SPECIFICATION | ||||||||||||
| Size | H.P.I NO.1 | H.P.I No.11/2 | H.P.I No.2 | H.P.I No.3 | H.P.I No.4 | H.P.I.5 | ||||||
| TABLE | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm |
| Face of Body | 9" | 230 | 10" | 254 | 11" | 280 | 12" | 300 | 13" | 325 | 14" | 350 |
| Working Surface | 9"x40" | 230x1000 | 10"x49" | 254x1244 | 11"x53" | 280x1346 | 12"x58" | 300x1473 | 13"x62" | 330x1550 | 14"x70" | 350x1752 |
| Size of T-slotes & Number |
1/2"=3 | 12=3 | 1/2"=3 | 12=3 | 1/2"=3 | 12=3 | 1/2"=3 | 12=3 | 5/8=3 | 16=3 | 5/8=3 | 16=3 |
| Cross | 6" | 150 | 8" | 177 | 10" | 254 | 12" | 279 | 14" | 304 | 16" | 400 |
| Vertical | 12" | 304 | 15" | 380 | 18" | 457 | 22" | 553 | 24" | 609 | 28" | 711 |
| Longitudinal
Automatic |
22" | 558 | 25" | 635 | 28" | 711 | 31" | 787 | 36" | 915 | 44" | 1100 |
| Table Rotation Side to Side |
45o-0-45o | 45o-0-45o | 45o-0-45o | 45o-0-45o | 45o-0-45o | 45o-0-45o | ||||||
| Standard Arbour | 1" | 25.4 | 1" | 25.4 | 1" | 25.4 | 1" | 25.4 | 1" | 25.4 | 1" | 25.4 |
| Taper of Spindle | ISO- 40 | ISO- 40 | ISO- 40 | ISO- 40 | ISO- 40 | ISO-40 | ||||||
| No. of Spindle Speed |
9 | 9 | 9 | 9 | 9 | 9 | ||||||
| Range of spindle
speed R.P.M |
45 to 750 | 45 to 750 | 45 to 750 | 45 to 750 | 45 to 750 | 45 to 750 | ||||||
| No. of feed (Longitudinal) |
3 S-F- M | 3 S-F- M | 3 S-F- M | 3 S-F- M | 3 S-F- M | 3 S-F- M | ||||||
| Motor Required H.P. & R.P.M |
2HP | 1440 | 2HP | 1440 | 3HP | 1440 | 3HP | 1440 | 5HP | 1440 | 5HP | 1440 |
| Height of Machine | 60" | 1524 | 64" | 1625 | 68" | 1727 | 75" | 1905 | 85" | 2159 | ||
| Width of box in side |
44" | 1117 | 46" | 1168 | 50" | 1270 | 55" | 1379 | 80" | 1524 | ||
| Length of box in side |
48" | 1219 | 52" | 1320 | 56" | 1422 | 63" | 1600 | 66" | 1676 | ||
| Height of box out side |
63" | 1600 | 69" | 1752 | 73" | 1854 | 80" | 2032 | 96" | 2438 | ||
| Net Weight Approx. kg. |
950 | 1250 | 1500 | 1850 | 2700 | |||||||
| Gross Weight Approx. kg. |
1200 | 1350 | 1650 | 2100 | 3100 | |||||||
