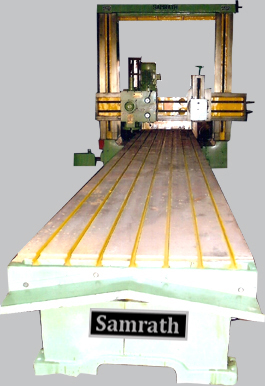

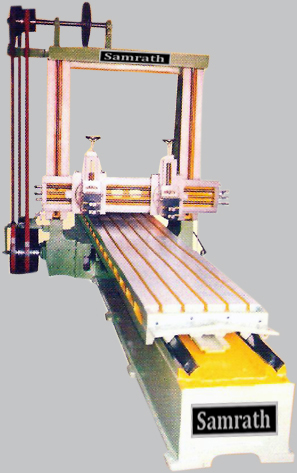

MODEL SMT 2100/4'X4'
Samrath Plano Millers Model SMT(6'X6')
Samrath Plano Millers Model SMT(6'X6')
MODEL : SMT 2100/5'X5'
Plano cum Plano Millers Model SMT(5'X5')
Plano cum Plano Millers Model SMT(5'X5')

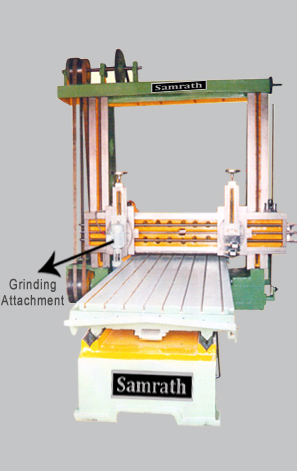

High Precision Heavy Duty Planers and Plano Miller
Technical Specifications:
Particular | 10 3050 |
10 3050 |
12 3660 |
12 3660 |
14 4270 |
16 4880 |
16 4880 |
18 5490 |
18 5490 |
20 6100 |
20 6100 |
22 6705 |
24 7315 |
Length of Bed | 16 4875 |
16 4875 |
19 5790 |
19 5790 |
22 6705 |
25 7620 |
25 7620 |
28 8535 |
28 7535 |
31 9450 |
31 9450 |
22 6705 |
37 11275 |
Length of Table | 10.3/4 3280 |
10.3/4 3280 |
12.3/4 3885 |
12.3/4 3885 |
14.3/4 4495 |
17 5185 |
17 5185 |
19 5795 |
19 5795 |
21 6400 |
21 6400 |
34 10360 |
25 7620 |
Stock of Table | 11 3355 |
11 3355 |
13 3965 |
13 3965 |
15 4595 |
17 5185 |
17 5185 |
19 5795 |
19 5795 |
21 6400 |
21 6400 |
23 7010 |
25 7620 |
Width of Table | 31 790 |
38 965 |
31 790 |
38 965 |
38 965 |
38 5185 |
44 1115 |
44 1115 |
50 1270 |
44 1115 |
50 1270 |
60 1525 |
60 1525 |
Planning Width | 61 1550 |
61 1550 |
61 1550 |
61 1550 |
61 1550 |
61 1550 |
73 1855 |
73 1855 |
85 2160 |
73 1855 |
85 2160 |
97 2465 |
109 2770 |
Height Under Cross Salid | 55 1400 |
61 1550 |
55 1400 |
61 1550 |
61 1550 |
61 1550 |
73 1855 |
73 1855 |
73 1855 |
73 1855 |
73 1855 |
73 1855 |
73 1855 |
Tool Add Feed | 12 305 |
14 355 |
12 305 |
14 355 |
14 355 |
14 355 |
16 405 |
16 405 |
18 455 |
16 405 |
18 455 |
18 455 |
18 455 |
Coss Solid Face | 15 380 |
17 430 |
15 380 |
17 430 |
17 430 |
17 430 |
19 480 |
19 480 |
21 530 |
19 480 |
21 530 |
23 580 |
25 630 |
Pillar Face Inch | 11.1/2 250 |
10 290 |
11.1/2 250 |
11.1/2 290 |
11.1/2 290 |
13.1/2 290 |
13.1/2 345 |
13.1/2 345 |
13.1/2 345 |
13.1/2 345 |
13.1/2 345 |
13.1/2 345 |
15.1/2 385 |
V to V Centre | 20 510 |
25 635 |
20 510 |
25 635 |
25 635 |
25 635 |
30 765 |
30 765 |
35 890 |
30 765 |
35 890 |
40 1015 |
40 1015 |
No of Tool Post | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
H P Required | 3 | 5 | 5 | 5 | 5 | 5 | 7.5 | 7.5 | 7.5 | 10 | 10 | 10 | 10 |
Approx. Wt. in Qtls | 70 | 102 | 95 | 115 | 130 | 145 | 158 | 180 | 200 | 220 | 240 | 260 | 280 |
