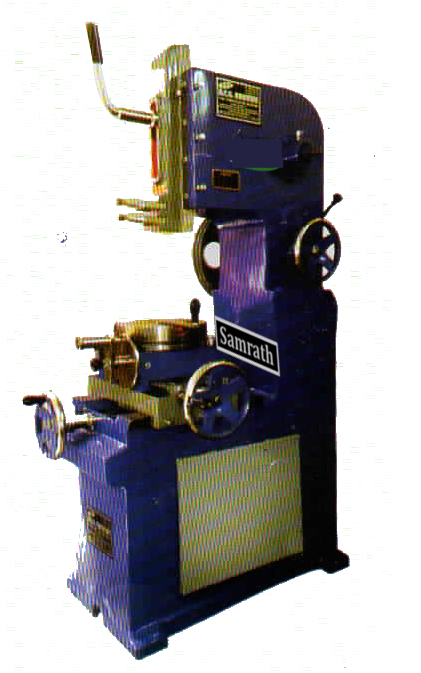

Slotter Machine
- That it does the jobs of both machines as well as that of slotting machine and milling machine at a time giving maximum accuracy and production.
- It is most useful for cutting keys in all types of Auto and workshop machinery parts.
- It is also useful for cutting outside and inside splying.
- There is a special arrangement of Endmill cutter by which all types of keys are cut in the shafting of all types os workshop jobs.
- It is also useful for cutting spur teeth in all types of workshop and auto parts job.
- This machine is most suitable and useful for cutting splying of MERCERY TRUCJ hubs and axels.
- This machine reduces the consumption of electric energy by doing the work of two seperate machines at a time.
- It reduces the area occupied by the machine in one workshop.
- Should you be interested in Slotomill machine, thus we are enclosing here with it/s technical data along with the price of the machine.
Specification | Sizes | Sizes | Sizes | Sizes |
Maximum Length of Stroke | 8’ Light |
10” Heavy | 10" | 12” Heavy" |
Length of Barn |
20” |
30” |
30" | 40" |
Width of Barm | 6" | 8" | 8" | 9" |
Length of Ram Bearing |
14” | 20 " | 22" | 26" |
No. of Speeds to Ram by Gear Box |
2 | 2” | 4 " | 4" |
Maximum Diameter of Work Admitted |
20" | 32” | 36" | 48" |
Maximum Height of Work Admitted |
7” | 9” | 11" | 15" |
Longitudinal Traverse of Table |
9" | 15” | 18" | 24" |
Transverse Traverese of Table |
10” | 12” | 15" | 18" |
Diameter of Circular Table |
12” | 15’ | 18" | 24" |
Horse Power Required |
1H.P. |
2 H.P. | 3 H.P. | 5 H.P. |
Approx. Weiht of Casting |
13 Qnt. |
15 Qnt. | 25 Qnt. | 30 Qnt. |
Dividing Arrangement |
Yes | Yes | Yes | Yes |
Slottomill Table Size |
30” x 8” | 30" x 8 1/2" | 36" x 8 1/2" | 48" X 11" |
Centre of Dividing Head |
5” | 5" | 6" | 5" |
