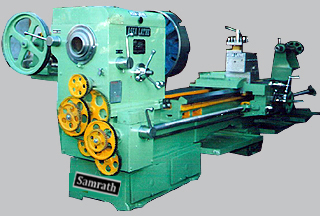

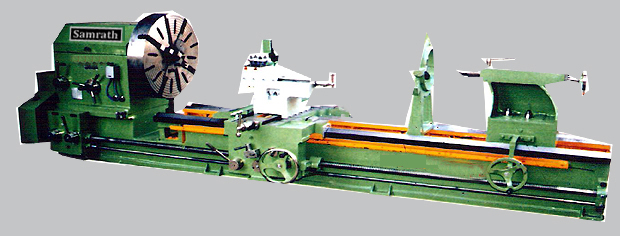

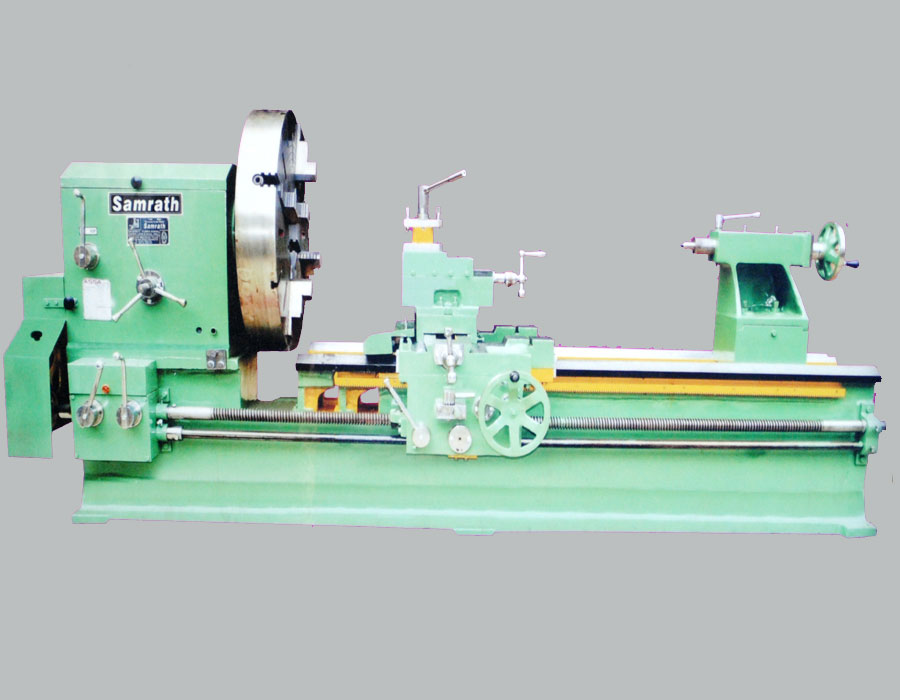

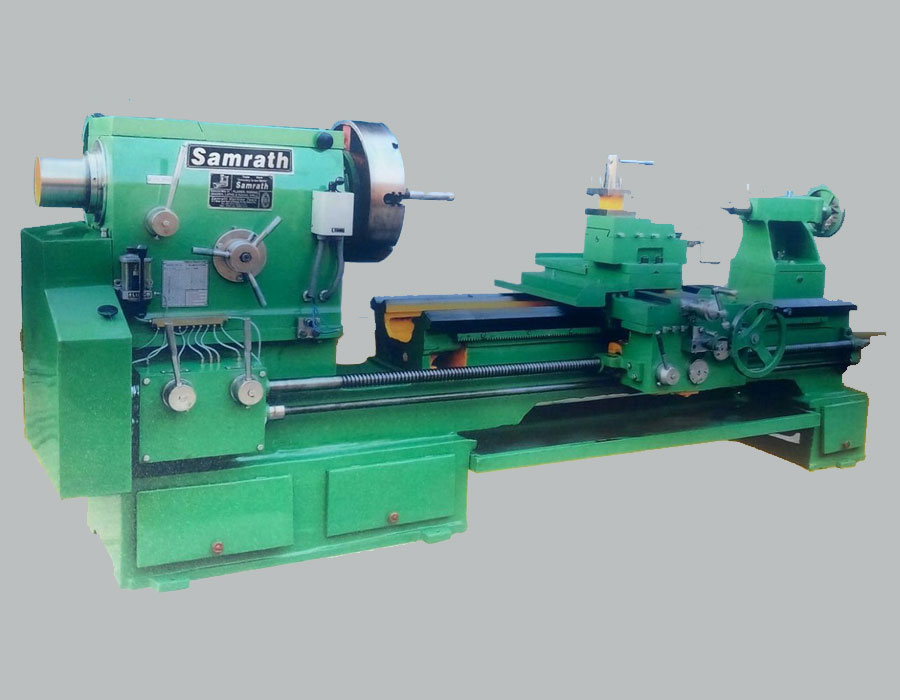

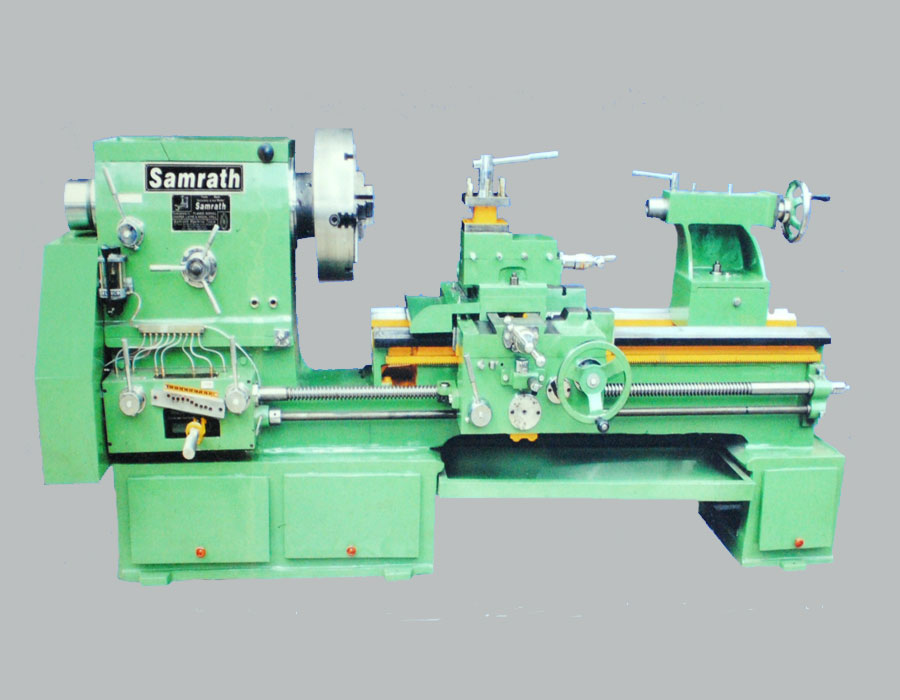

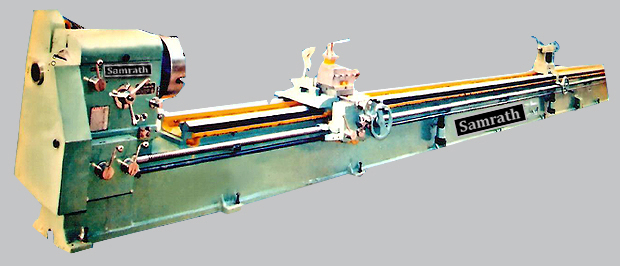

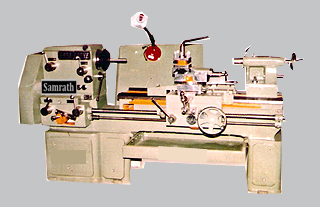

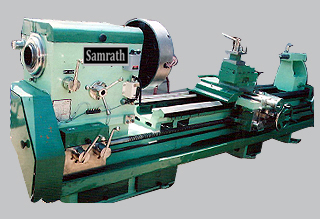

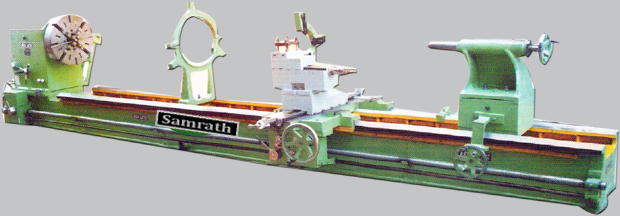

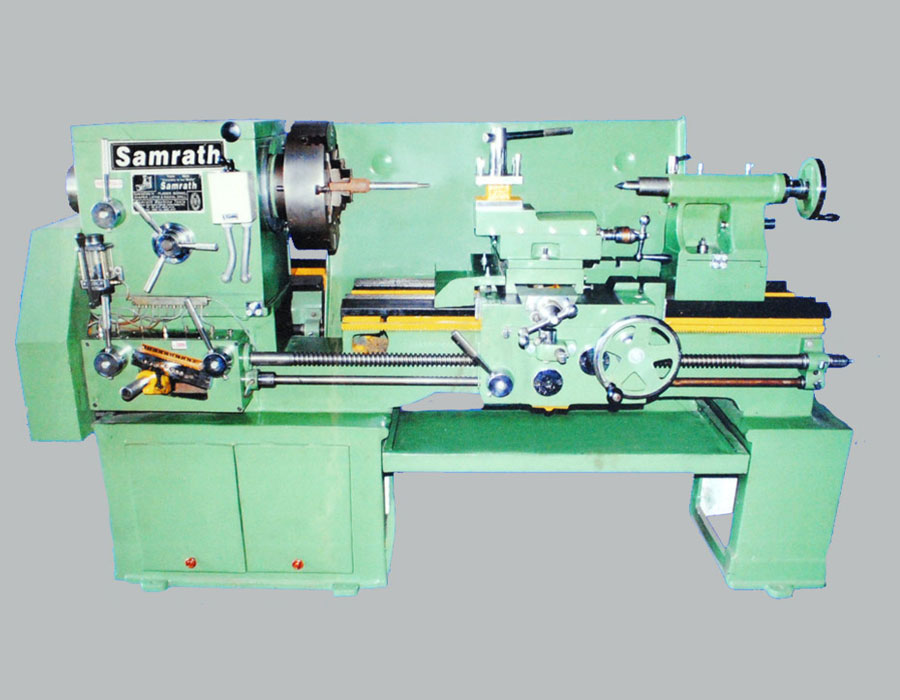

Heavy Duty Roll Turning Lathe



Size : 30'x30"x28"
Size : 20'x28"x26"
Size : 35'x18"x16"
Size : 16'x20"x18"
Size : 6½'x14"x12"
Size : 12'x20"x18"
SPECIFICATIONS
1. Length of  bed 6 8.6 10 12 12 12 14 14 14 14 16 16 16 16 16 20 22 24 26 28 30 32 34 36 40
2. Width of Bed 14 16 18 18 20 20 20 20 22 22 20 20 22 22 24 26 28 30 32 34 36 38 40 42 44
3. Total width of gap (inch) 13 16 19 19 26 26 26 26 27 27 26 26 27 27 30 30 32 32 32 32 34 34 34 34 36
4. NO. of Gap 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
5. Width of gap in front of face plate (inch 9 13 15 15 22 22 22 22 23 23 22 22 23 25 25 26 26 26 26 28 28 28 28 28 30
6. Swing in gap dia (Inch) 36 43 48 48 52 52 52 52 60 60 52 52 60 60 64 68 72 76 80 84 86 90 94 98 102
7. Admit between centres 34 53 72 96 96 90 90 114 114 112 138 138 136 136 154 168 192 216 235 258 282 306 328 354 400
8. No.ofback Gear set DP 10 10 10 10 8 8 8 8 8 8 8 8 8 8 7 7 7 7 7 7 7 7 7 6 6
9. Heightofcentre over bed(inch) 12 15 16 16 18 18 18 18 20 20 18 18 20 20 22 24 26 28 30 32 32 34 36 38 40
10. Maximum swingover carriage 18 20 22 22 25 25 25 25 29 29 25 25 29 29 32 36 40 44 48 52 56 60 64 68 72
11. Spindle Hollow(Inch) 3.1/8 3.5/8 4 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8 4.1/8
12. M>T center 3 3 3 3 3 3 3 3 3 4 4 3 3 4 4 4 5 5 5 5 5 5 5 5 5
13. NO of spindle speeds 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6   6
14. Noof pedastals 2 2 2 3 3 - 3 - 3 - 4 - 4
------Planer Type ------
- - - - - - -
15. Type of bed Sp Sp Sp Sp Sp Pt Sp Pt Sp Pt Sp Pt Sp Pt Pt Pt Pt Pt Pt Pt Pt Pt Pt Pt Pt
16. NO.ofv-belt &section 2No
  B		 2No
  B		 2No
  B		 2No
  B		 2No
c		 2No
  c		 2No
c		 2No
  c		 2No
  c		 2No
 c		 2No
  c		 2No
 c		 2No
  c		 2No
c		 3NO.
c		 3NO.
c		 3NO.
c		 vv 3NO.
c		 3NO.
c		 3NO.
c		 3NO.
c		 3NO.
c		 3NO.
c		 3NO.
c
17. Tailstockof quill Dia(inch) 2.2/8 2.4/8 2.4/8 2.4/8 2.5/8 2.5/8 2.5/8 2.6/8 2.6/8 2.5/8 2.5/8 2.6/8 2.6/8 2.6/8 3 3 3.1/4 3.1/2 3.1/2 3.1/2 3.1/2 3.1/2 4 4 4
18. Tailstocksquil travel(Inch) 9 10 12 12 14 14 14 14 15 15 14 14 15 15 16 16 16 16 16 16 16 17 17 17 17
19. Leadscrew Dia (MM) 40 45 50 50 50 55 55 55 55 55 55 55 55 60 63 63 63 63 63 63 63 65 65 65 65
20. FeedShft Dia(mm) 25 28 28 32 32 32 36 36 36 36 36 36 36 36 36 40 40 40 40 40 40 40 40 404 40
21. Headstock Gear(Helical D.P) 6 6 6 6 5 5 5 5 5 5 5 5 5 5 5 4 4 4 4 4 4 4 4 4 4
22. H.P Recommended 1 2 2 2 2 2 2 2 3 3 2 3 3 3 5 5 5 5 5 5 7.5 7.5 7.5 7.5 7.5
23. ApproxGross weight 12 17 22 28 32 38 37 42 41 46 41 45 45 48 58 72 85 97 110 115 130 150 170 210
